Products
-
PRODUCT 01

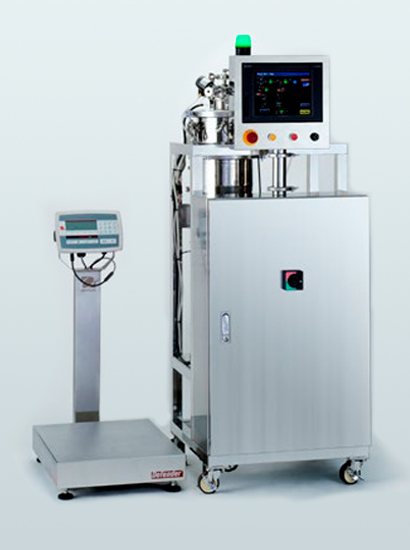

Degassing System
(In-line/Batch Degassing System)Overview
Defoaming, degassing, and deoxygenation system that efficiently processes the liquid film by dissolving and removing fine bubbles, dissolved gases, and oxygen. In-line/batch processing is available and can be combined. The maximum dissolved oxygen degassing capacity (DO value) is ≥0.5mg/L (In case of purified water. DO value pre-degassing: 8.84mg/L at 20°C). Hygienic design properties (CIP1 possible), simple construction that is easy to disassemble and clean.
Able to handle high-temperature degassing.Product Designs
Combined degassing/filling system is also available.
Application Examples
Inks, capsules, secondary batteries
-
PRODUCT 02

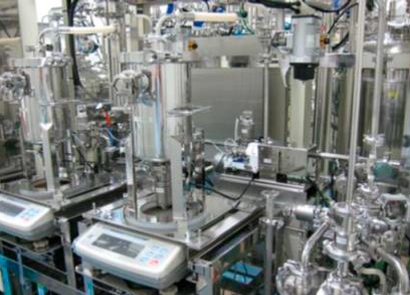

Compact In-line Blender
(Liquid/Liquid, Liquid/Gas Blending)Overview
In-line blender that continuously adds and combines multiple additives (liquids) to the main solution with high accuracy. Precisely measures and optimizes mass flow rate of each liquid, while the flow and pressure control technology manages the added concentration with high accuracy, thus minimizing the effects of disturbances.
Hygienic design properties (CIP1 possible), supports SIP2 in accordance with the specifications.Product Designs
Pre-/post-degassing, as well as combined post-processing sterilization/filling is available.
Application Examples
Pharmaceuticals
-
PRODUCT 03

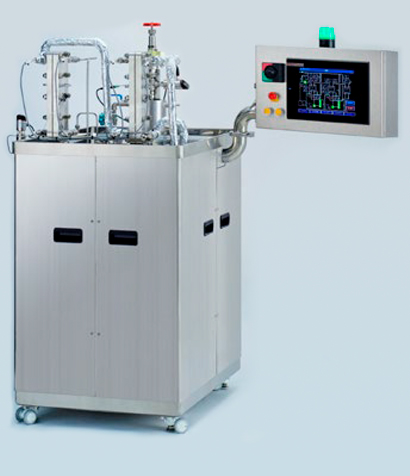

Compact In-line Liquid Sterilization System
Overview
Compact continuous sterilization system that achieves stable small-volume sterilization, with a minimum flow rate of 1L/hr. Enables sterilization evaluation with small-volume prototypes, speeding up the development cycle. Easy-to-handle metering pump for flow rate control of small volumes.
Hygienic design properties (CIP1 possible), supports SIP2 in accordance with the specifications.
Can be used with electricity or water only – no compressed air or steam required – making it ideal for laboratories.Product Designs
Standard design comes with a plate heat exchanger; tube type is also available.
Application Examples
Various beverages
-
PRODUCT 04

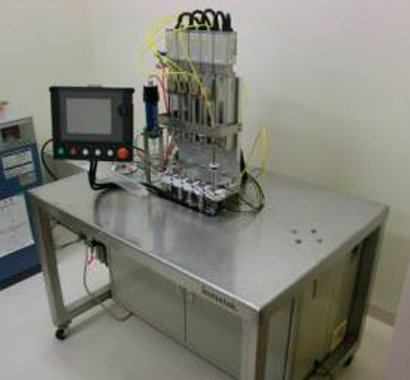

Compact Filling System
Overview
Vacuum degassing of syringes, etc. in advance. Precision position control with linear servo actuator allows for accurate filling of small volumes. Fix volume filling (constant volume), unaffected by the liquid’s viscosity or density, with excellent reproducibility. Multiple simultaneous fillings are also possible.
Hygienic design and refining properties; ion-free metal option available.Product Designs
Simple single filling system
Application Examples
Conductive adhesives for semiconductors and LEDs
-
PRODUCT 05

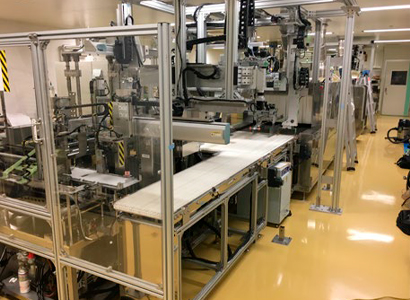

Cartesian Robot System
Overview
Automation system using an XYZ cartesian robot with a short takt time and excellent productivity, mainly used in transport automation. Combined with a conveyor system or a fluid transfer machine, it allows for unmanned operation, economizing manpower and contributing to workforce optimization. The application of sanitizing and refining technologies make it ideal for handling not only foods and pharmaceuticals, but also fine chemicals and electronics.
Product Designs
Post-filling automation that follows liquid processing, creating a consistent system.
Application Examples
Automated laboratory container cleaning system
-
PRODUCT 06

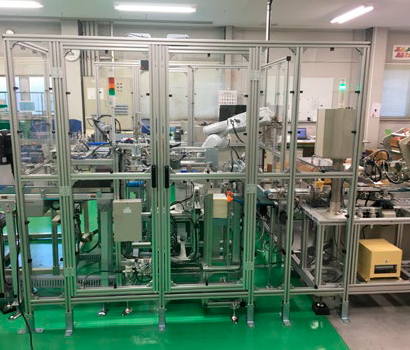

6-Axis Robot System
Overview
6-axis robots are excellent for automating human-operated work and optimizing manpower. Although its takt time is equal to that of humans, it can be operated 24 hours a day, 365 days a year, improving productivity and contributing to workforce optimization. The application of sanitizing and refining technologies make it ideal for handling not only foods and pharmaceuticals, but also fine chemicals and electronics.
Product Designs
Post-filling automation that follows liquid processing, creating a consistent system.
Application Examples
Automated packaging system for electronic devices
-
PRODUCT 07

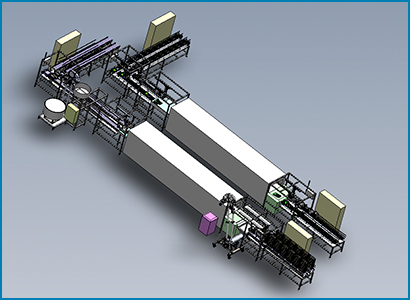

Full Automation Systems
Overview
By combining fluid processing and advanced robotics, an automated system that integrates the processing, filling, and packaging of various liquids is established – creating a turnkey system. Supports various networks and allows for real-time communication with your manufacturing control systems.
